Corners, Trims & Fascia

Used to finish off the external corner of a building as well as around windows and doors. Fixed with the perforated closure and 20mm fixings.

Construction: Flexible Polymer Resin
Size: 50x50x3200mm
Colour Options and Product Code:
Smoked Oak – MCPE50D
Antique Oak – MCPE50A
Golden Oak – MCPE50G
Burnt Cedar – MCPE50R

Used to finish off the internal corner of a building, fixed with the perforated closure and 20mm fixings

Construction: Flexible Polymer Resin
Size: 36x36x3200mm
Colour options and Product Code:
Smoked Oak – MCPH38D
Antique Oak – MCPH38A
Golden Oak – MCPH38G
Burnt Cedar – MCPH38R

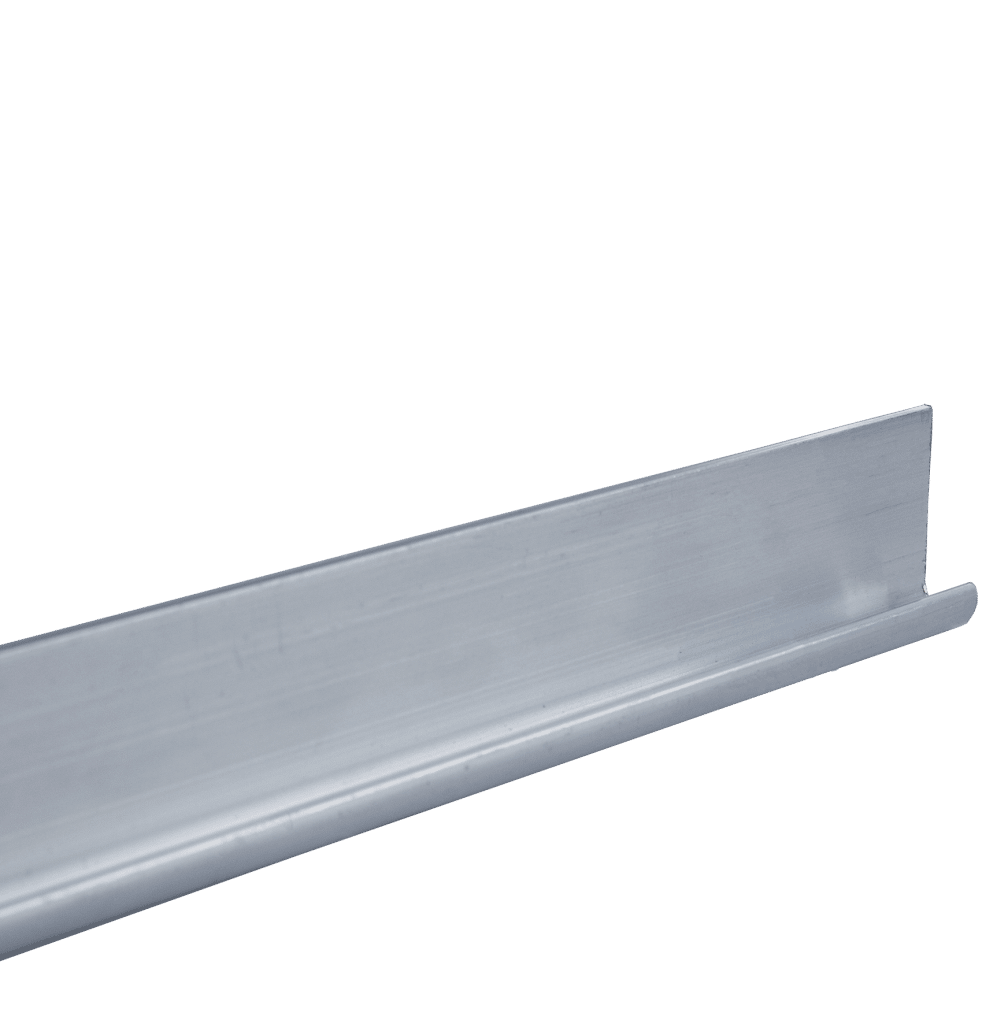

Trim used to start the cladding at the bottom, when the cladding is fitted horizontally. Fixed with the perforated closure and 20mm fixings.

Construction: Aluminium
Size: 25x10x2500mm
Product code: GT250J

Used to start the cladding at the bottom, when the cladding is fixed vertically. Fixed with the perforated closure and 20mm fixings.

Construction: Aluminium
Size: 25x13x2500mm
Product code: GT250L

Used to prevent insects and rodents getting into the ventilated cavity behind the boards, whilst allowing airflow. Fixed at the bottom of the cladding with the starter trim, also at the top on its own, as well as with the corner profiles. Fixed with the 20mm fixings.

Construction: Aluminium
Product code:  GP300L

Used to fix cladding boards onto the battens through the tongue on the board.

Construction: A2 Stainless Steel
Size: 3.5x30mm
Product code: FC30P250

Used to fix the corner profiles, starter trims and perforated closures.

Construction: A2 Stainless Steel
Size: 3.5x20mm
Product code: FC20P250

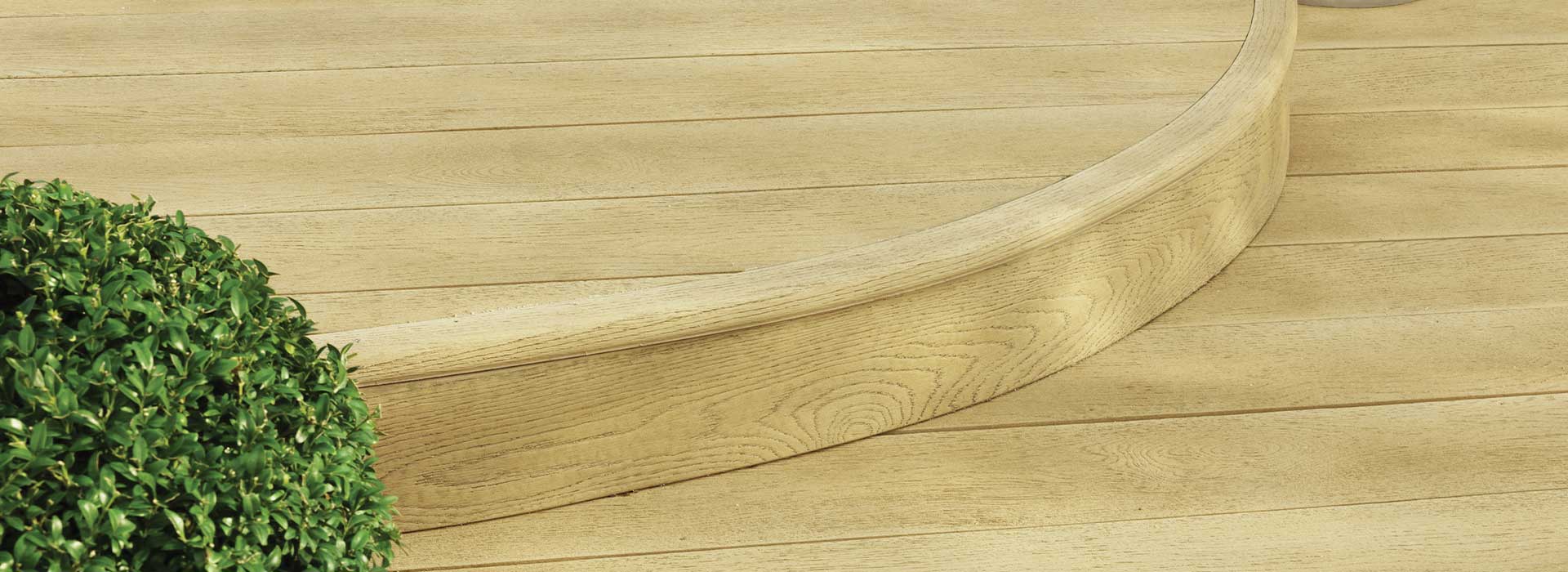

Fascias may be required for window and door reveals or soffits, fixed with 35mm Durafix fixings.

Construction: Polymer Resin Core / Lastane surface
Size: 146x3200x16mm
Product codes:
Smoked Oak – MFN320D
Antique Oak – MFN320A
Golden Oak – MFN320G
Burnt Cedar – MFN320R
